ROUND NOZZLE DIFFUSERS

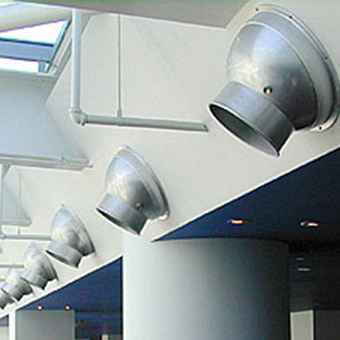

Spot Diffuser
- A versatile supply nozzle capable of delivering air to spaces where long-distance penetration and low noise levels are required.
- Rotatable within 40 degrees for jet setting.
- 3 different sizes 200, 315, & 400 mm dia. are available.
- Material: Aluminum and Stainless steel.
- Finish: Powder coated, raw finished, anodized.
Jet Diffuser
- Fully adjustable high capacity diffuser.
- Reversible and rotatable core to fine-tune both pattern and deflection of the throw.
- 3 different sizes 250, 315, & 380 mm dia are available.
- Material: Aluminum and Stainless steel.
- Finish: Powder coated, raw finished, anodized.
EyeBall Diffuser
- A nozzle capable of supplying air over large distances and occupied zones and spaces where low noise levels are required.
- Rotatable eyeball within +30 degrees for jet setting.
- Sizes available 400 , 315 , 275 , 200, 150 mm dia.
- Material: Aluminum and Stainless steel.
- Finish: Powder coated, raw finished, anodized.
Disc / Exhaust Valves
- Disc Valves are used for supply, exhaust, and ventilation applications.
- Air Valve allows a smooth adjustment of the airflow by rotating the center disc.
- Different sizes 200, 150 ,125 , 100 mm dia are available.
- Material: Aluminum, Stainless steel, and Iron.
- Finish: Powder coated, zinc coated.
Spigot (Adaptor)
Round reducer for ventilation ducting , for Extractor fan, Bathroom, Kitchen , Toilet, etc.
- Used as Ventilation ducting and accessory.
- Height is available in inches 2”- 3”.
- Sizes available 300, 250, 200, 150, and 100 mm dia.
- Material: Aluminum, M.S and Stainless steel.
- Finish: Powder coated, anodized and raw finished, Iron with zinc coating.
